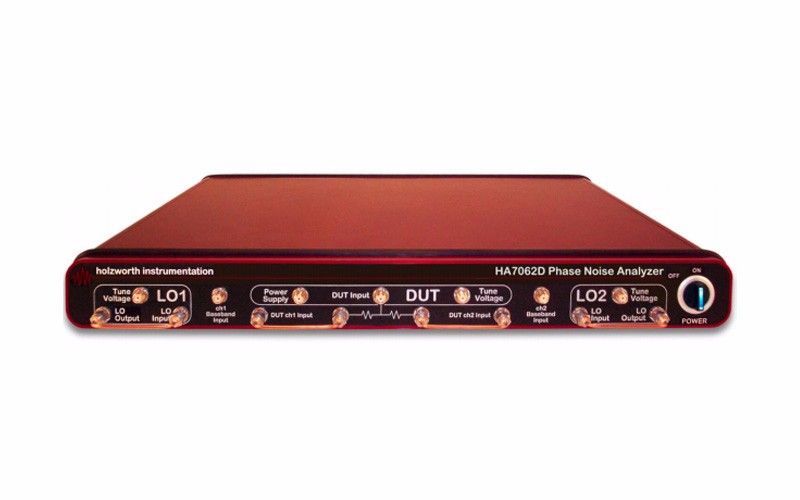

HA7062D 相位噪声分析仪
The HA7062D Real Time Phase Noise Analyzer is born from Holzworth’s history of industry leading phase noise analyzers with proven accuracy, high reliability, automation and flexibility. The real time engine covers the full measurement bandwidth with extremely fast measurement speeds to reduce product development time and optimizes ATE manufacturing throughput.
索取报价2

点击索取报价,选择产品以及所需配件,发送索价申请后,将有专人与您联系

027-8777 1662 sales@eanalyzer.com.cn
  • 产品概述
  • 配置选型

The HA7062D Real Time Phase Noise Analyzer is born from Holzworth’s history of industry leading phase noise analyzers with proven accuracy, high reliability, automation and flexibility. The real time engine covers the full measurement bandwidth with extremely fast measurement speeds to reduce product development time and optimizes ATE manufacturing throughput.



PRODUCT CHARACTERISTICS

  • REAL TIME DATA ACQUISITION = FAST MEASUREMENTS
  • INPUT FREQUENCY RANGE:   10MHz to 40GHz
  • MEASUREMENT OFFSET:...0.1Hz to 100MHz
  • ACCURATE: ANSI z540 TRACEABLE DATA to 0.1Hz
  • INTERLEAVED AM / PM MEASUREMENTS
  • ABSOLUTE / RESIDUAL / AM / BASEBAND / JITTER
  • 1U CHASSIS IDEAL FOR ATE APPLICATIONS



PRODUCT SUMMARY

MEASURED NOISE FLOORS: Competitive designs approximate their measurement noise floors, versus providing actual noise floor data. The front end of the HA7062C was designed in part, so that the noise floors limits can actually be measured.

UNPARALLELED ANALOG PERFORMANCE: The HA7062C has a high speed digital processor for speed, but the proven accuracy and speed starts with the analog front end. A key component of the analog front end is a pair of Holzworth 6GHz HSX Series RF Synthesizers as the test system’s internal LOs. These ultra low noise RF sources not only complement the dual core FFT engine to provide one of the most advanced phase noise analyzers available, but they are also made available to the user at the front panel’s LO Output ports.

REPEATABLE DATA: Holzworth’s fully shielded, fan-less 1U chassis completely eliminates ground loops and troublesome microphonics for uncompromised performance and repeatability. See it for yourself knowing that Holzworth encourages running head-head tests with the competition. Contact Holzworth directly for availability of an evaluation unit in your area.

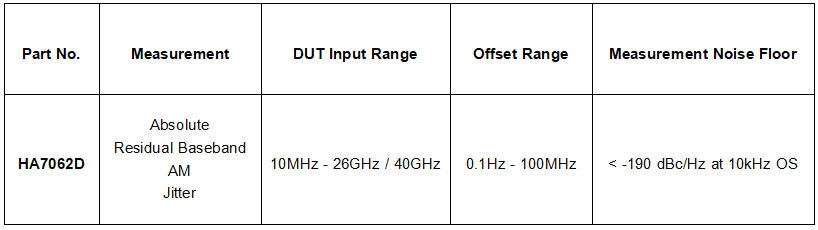

HA7062D SERIES SPECIFICATIONS



HA7062D SOFTWARE

The HA7062D GUI offers an extremely user-friendly means to utilize the full functionality of the HA7062D on any Windows-based PC. Absolute, Additive, Jitter, AM Noise, and more can be performed using the intuitive software GUI.
